VIS-E 125

Self-centering vice for productive CNC machining

Self-centering vice for productive CNC machining. Suitable for 5 axis machines with rotary jaws. Optimum ratio of clamping force and vise size. The vise can meet the requirements of applications with an emphasis on rigid and precise clamping of the blank. Suitable for both roughing and finishing operations. Special coating of the movement screw for effective transmission of the tightening torque to the clamping force. Version in 2 length variants L= 170 or 214. As accessories, roughing jaws and exchangeable jaw inserts can be purchased. Prepared for installation of the ZEPO-V modular clamping system.

Simple, precise and rigid construction
Hardened and ground sliding surfaces
Interchangeable clamping jaws and inserts
Standard version includes: set of smooth jaws with 3 mm shoulder, CEP-135 clamping pin, sealing cover for NES-T 135 clamping socket, set of screws

Short name	Length (mm)	Width (mm)	Height (mm)	Weight (kg)	Working stroke (mm)	Max. clamping power (kN)	Repeted clamping accuracy (mm)	Price (EUR)	Order code

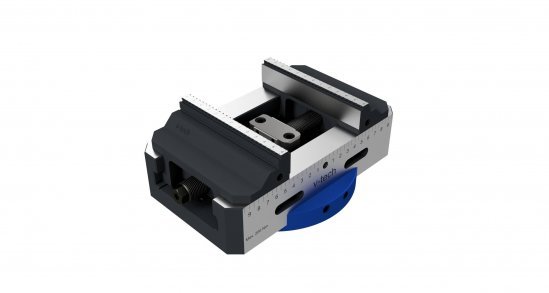

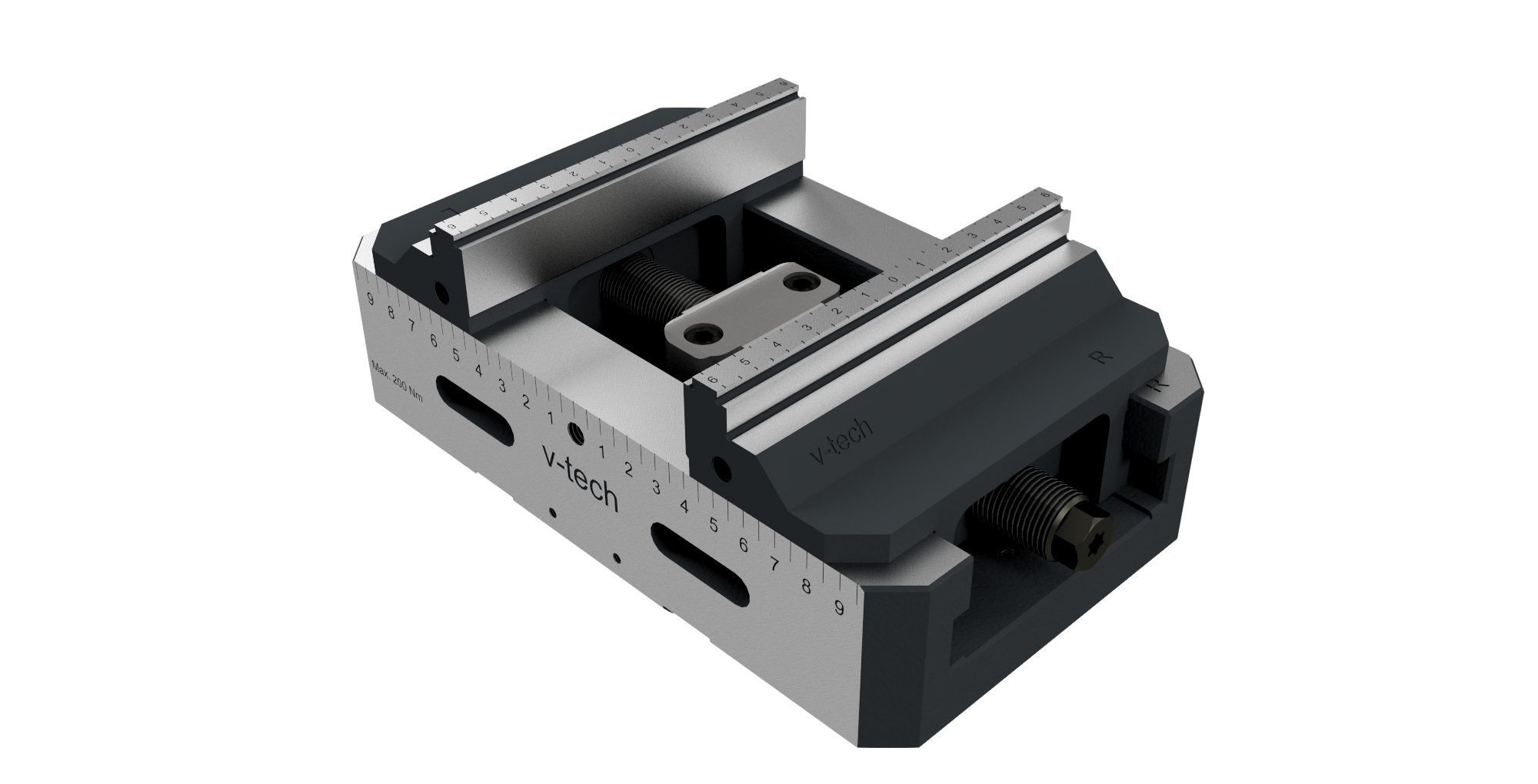

VIS-E 125	214	125	79	9,3	106	25	0,02	813 €	240020102

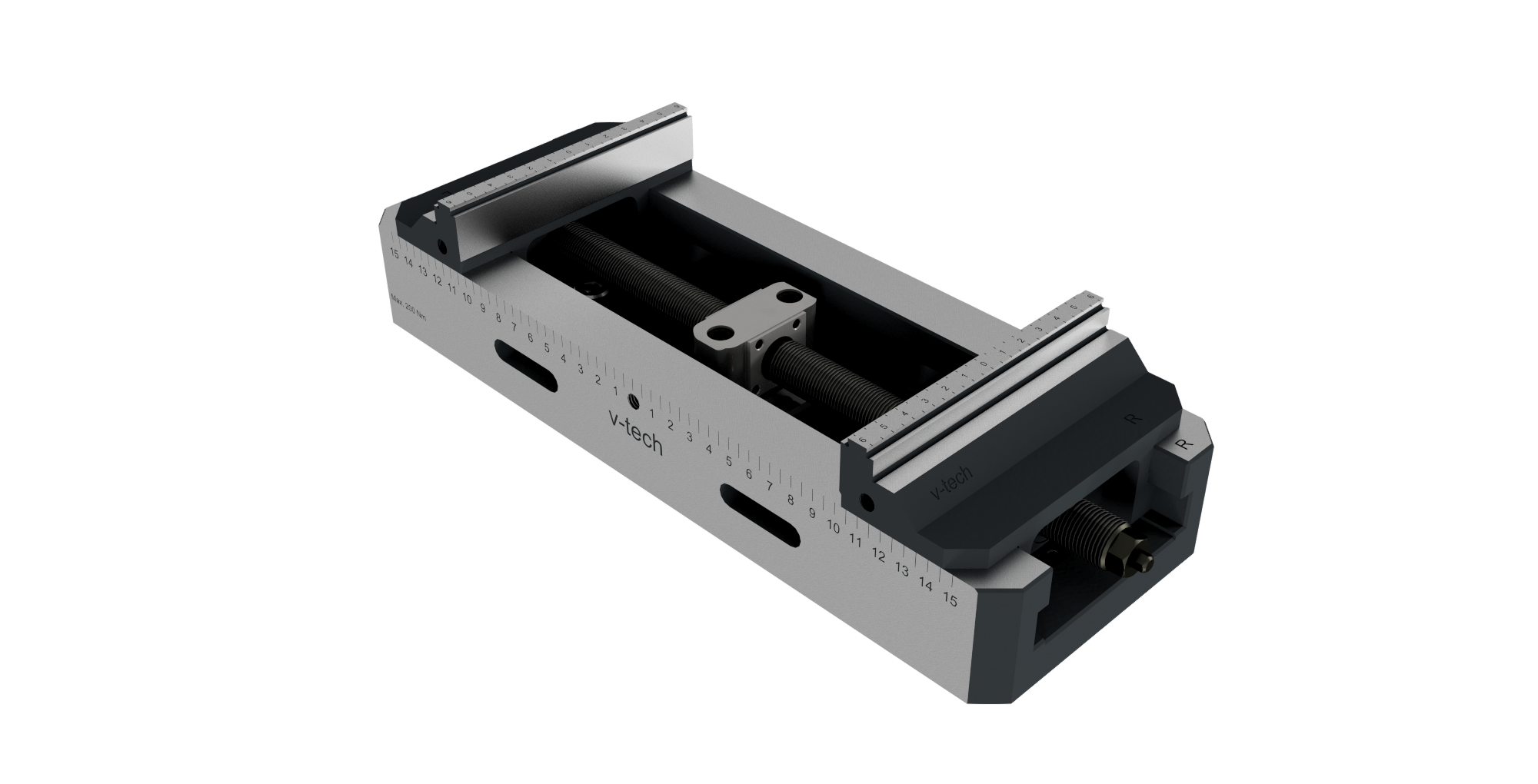

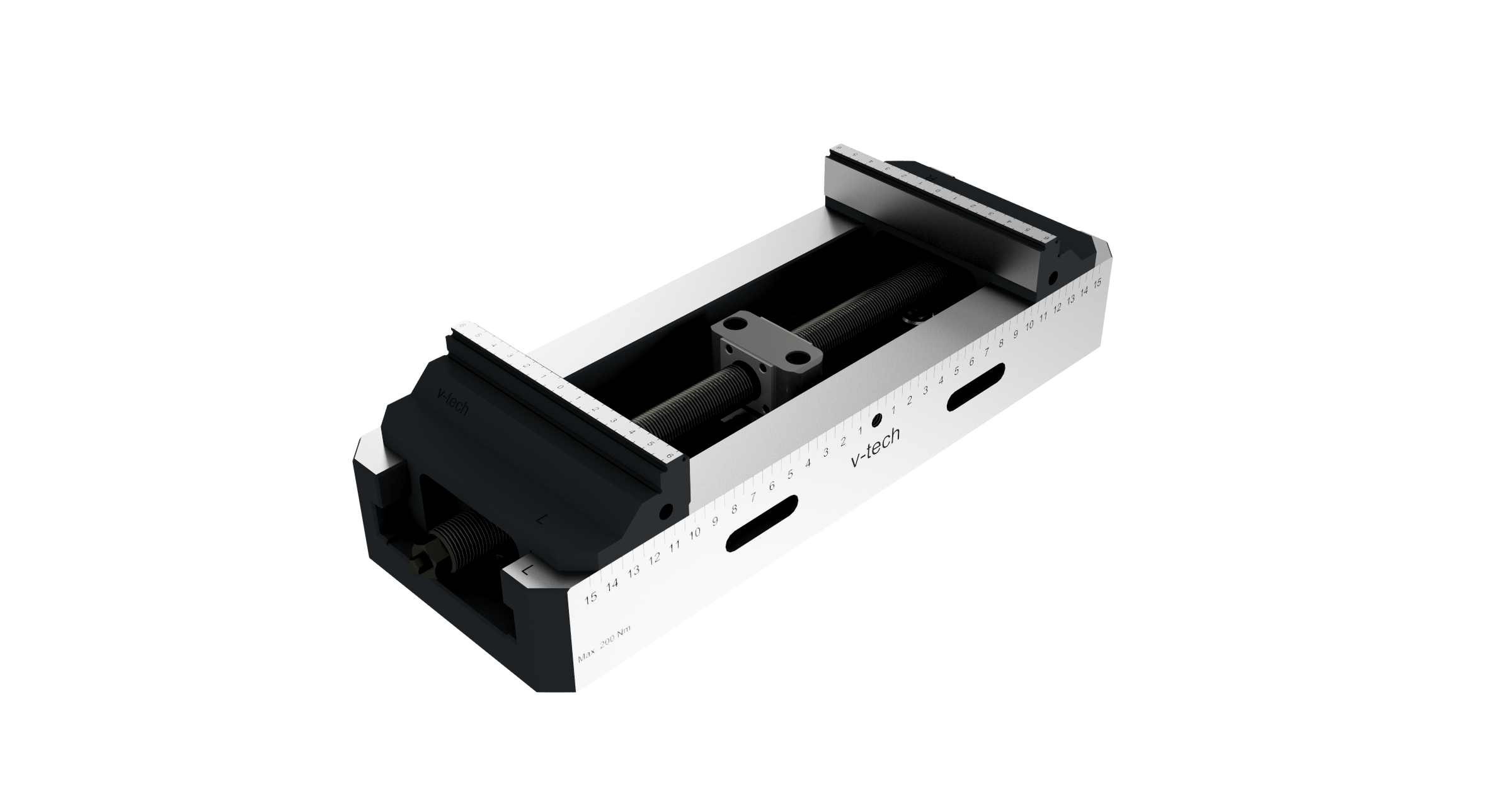

VIS-E 125	340	125	79	13,0	232	25	0,02	914 €	240020104

Accessories

Set of roughing jaws

Suitable for heavy roughing application
The possibility of clamping the rough semi-finished product
Clamping of the blank in 3.5 mm
Suitable for steel and non-ferrous metals

Order code: 240021117

Set of jaws with replaceable inserts

Quick change and adjustment of interchangeable inserts
standard 3 types of inserts: roughing, precise, with the possibility of adjustment
precision jaws included as standard in the jaw set

Order code: 240021206

Downloads

3D model of VIS-E 125 length 214stp6.43 MB

3D model of VIS-E 125 length 214 with roughing jawsstp7.58 MB

3D model of VIS-E 125 length 214 with insert jawsstp5.31 MB

3D model of VIS-E 125 length 340stp7.61 MB

3D model of VIS-E 125 length 340 with roughing jawsstp8.77 MB

3D model of VIS-E 125 length 340 with insert jawsstp6.50 MB
