MtConnect for Haas CNC
MtConnect simply and quickly on your Haas machine. Pre-configured adapter for machine data acquisition from Haas machine tools. Web interface for easy and quick configuration. Connection to the machine's RS232 port and current machine data available on your corporate Ethernet network. One device can serve 2 machines. Robust and durable aluminum design of the adapter.
Export machine parameters from a Haas machine
- current spindle revolutions, current coordinates of movement axes, current tool in the spindle
- correction of the tool used, length of the tool used
- 100% spindle and rapid traverse override status
- machine mode, NC program status, total stop button status, counter of produced pieces
- NC program number, NC program name
- possibility of customer adjustment to specific required data
Technical parameters
| Data input port | 2x RS232 |
| Data output port | ethernet, RJ45 |
|
Length |
94 mm |
| Width | 65 mm |
| Height | 54 mm |
| Weight | 0,4 kg |
| Power supply | 5 V |
| Configuration | web server |
| Fasten | DIN rail |
| IP address | DHCP |
| Price | 774 euro |

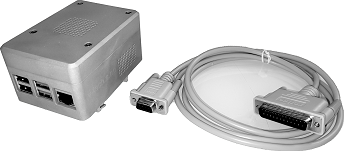

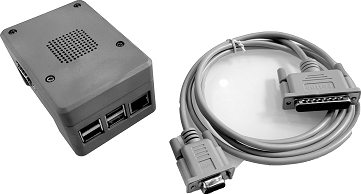

Package contents: 1x adapter for connecting up to 2 Haas CNC machines, power adapter, 1x RS232 cable 1.8 m long, 1x DIN rail holder
