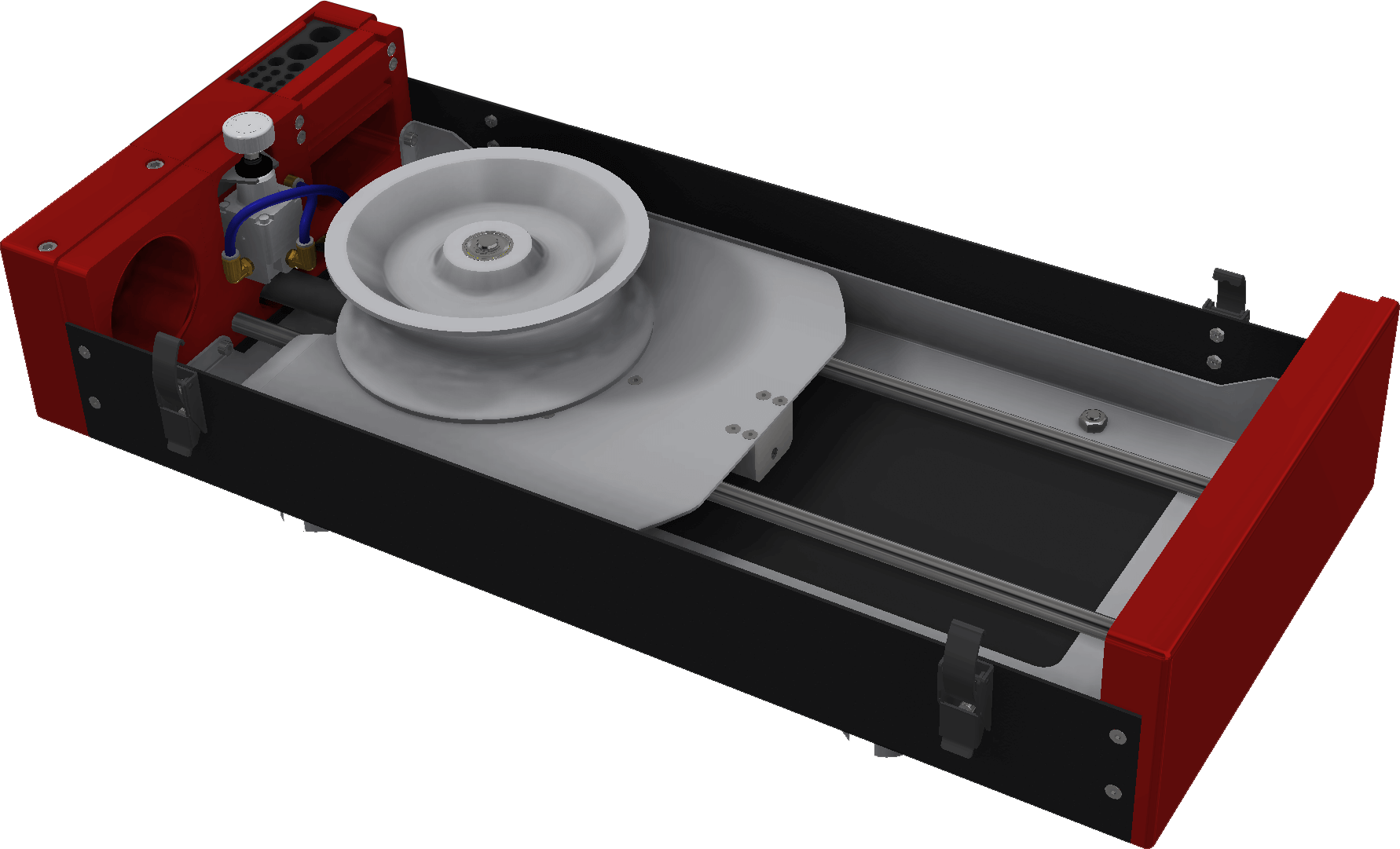

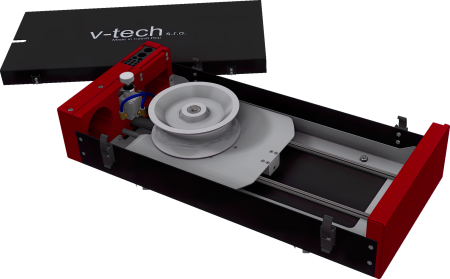

SUCO-v 440 (660)

Supply Compensator

Compensation system for maintaining a tight bundle of leads to the end effector of an industrial robot (pneumatics, hydraulics, cables ...)

  • Pneumatic principle

  • Possible regulation of compensating force

Short name Length (mm) Width (mm) Height (mm) Weight (kg) Max. bunch diameter (mm) Max. length compensation (mm) Price (EUR) Order code
SUCO-V 440  440 202 124 13,9 43 240 (2x120) 1710 € 210040050
SUCO-V 660 660 290 134 22,9 65 480 (2x240) 2043 € 210040051
