ROB-CLT 82 (142)

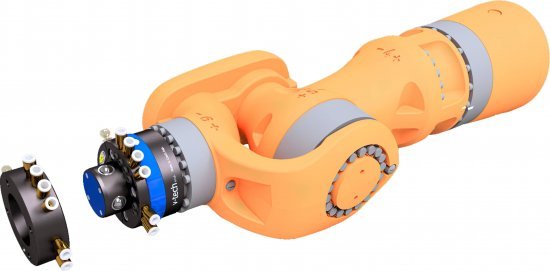

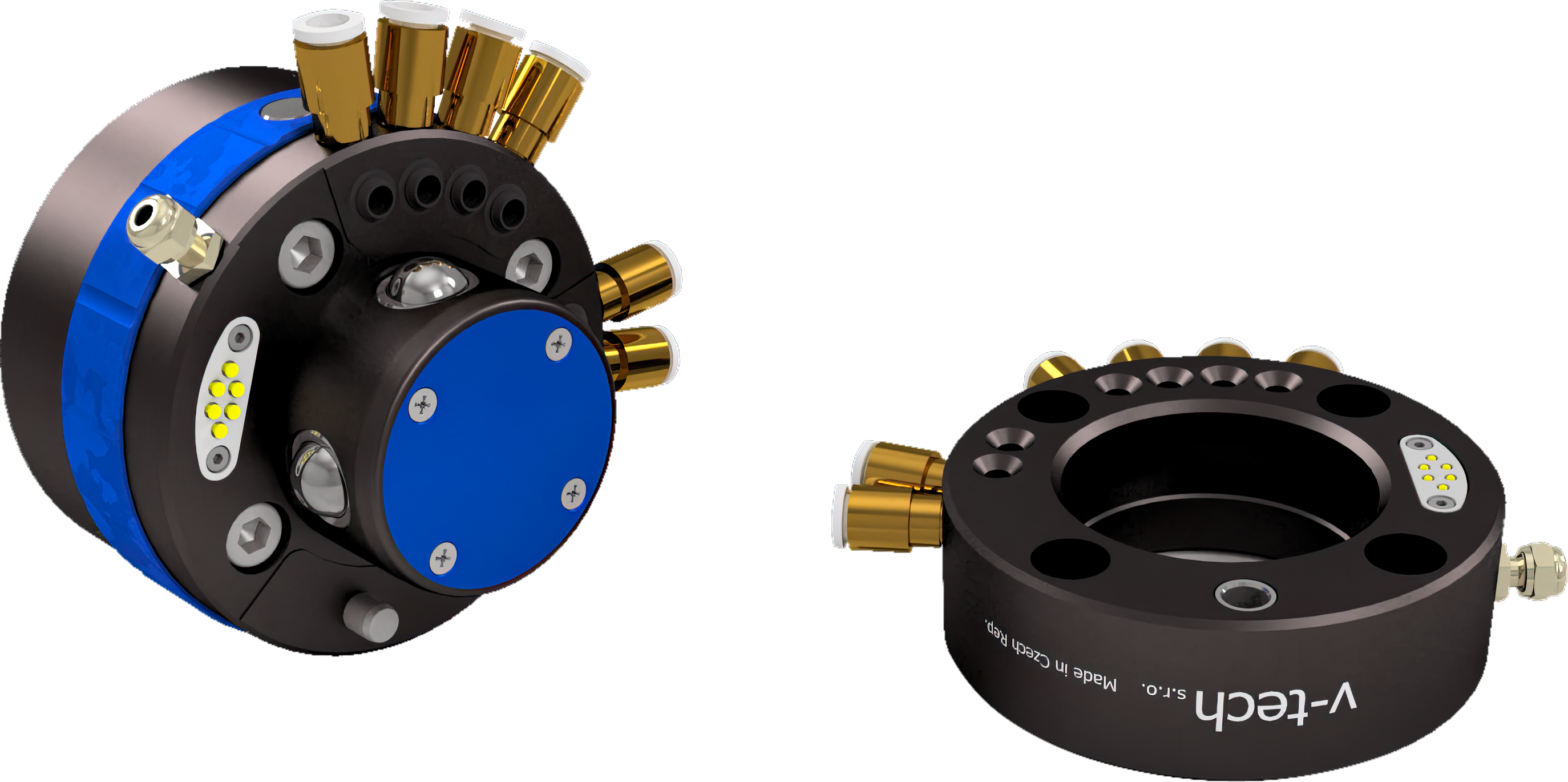

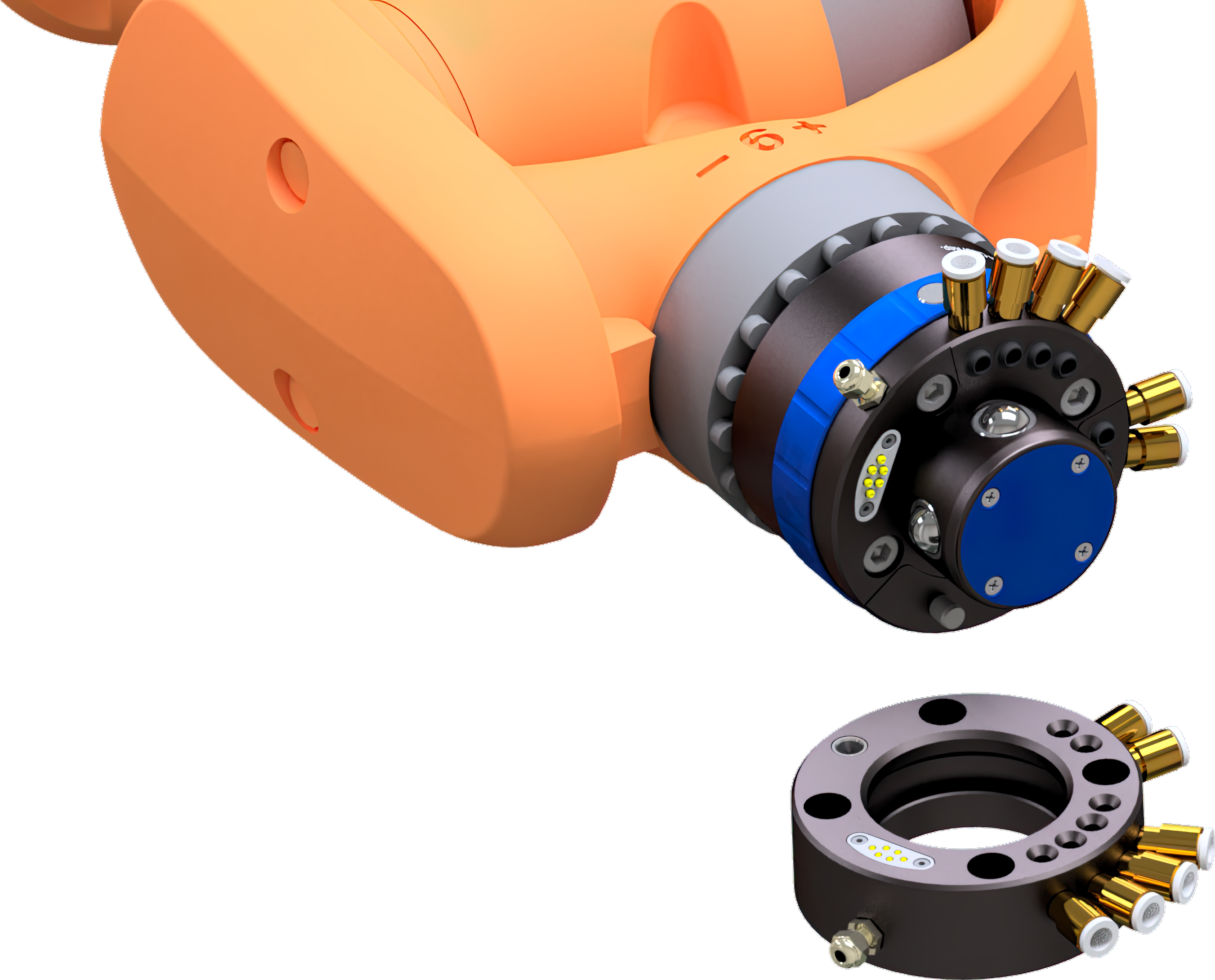

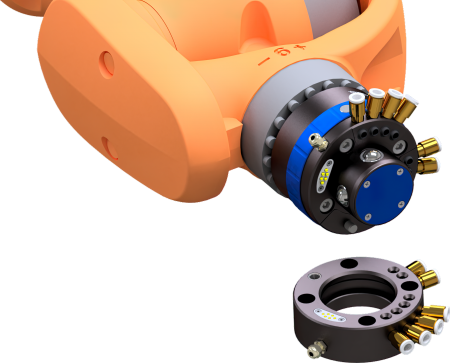

Mechanical clutch for industrial robots

Fast and precise coupling of industrial robot flange and tool (gripping head, technological head, etc.). The ideal solution for frequent tool changes, in which the use of a coupling eliminates the time required for the change itself as well as for measuring the reference points. The ROB-CLT coupling excels in its compact design while maintaining a high load capacity.

  • Rigid and precise clamping

  • Simple control

  • 6x pneumatic jumper

  • 1x signal jumper

Short name Length (mm) Outer diameter (mm) Weight (kg) Setting accuracy (mm) Max. load (Nm) Pneumatic connector Signal connector Price (EUR) Order code
ROB-CLT 82 70 82 1,1 0,02 120 6x 1x 1163 € 2100310000
ROB-CLT 142 73 142 3,7 0,02 255 6x 1x 1547 €
