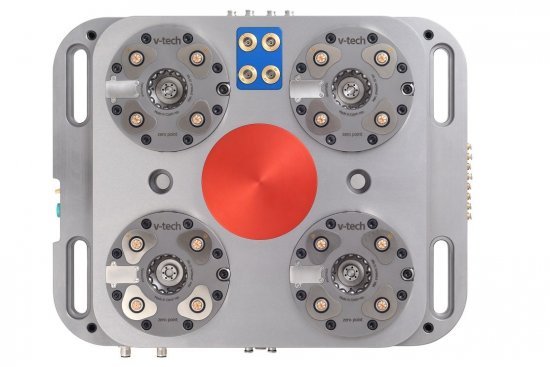

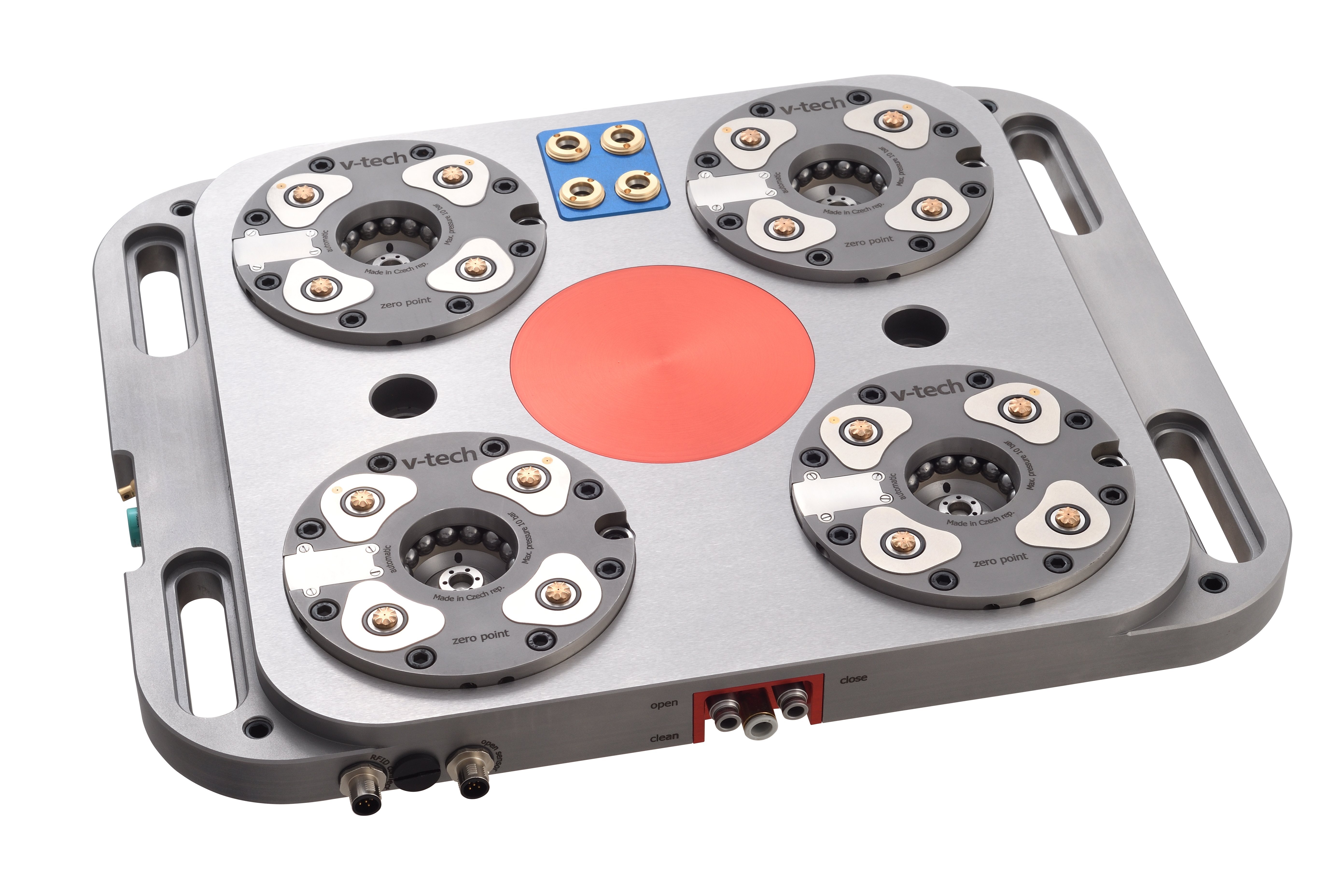

AZV-T 4H 200

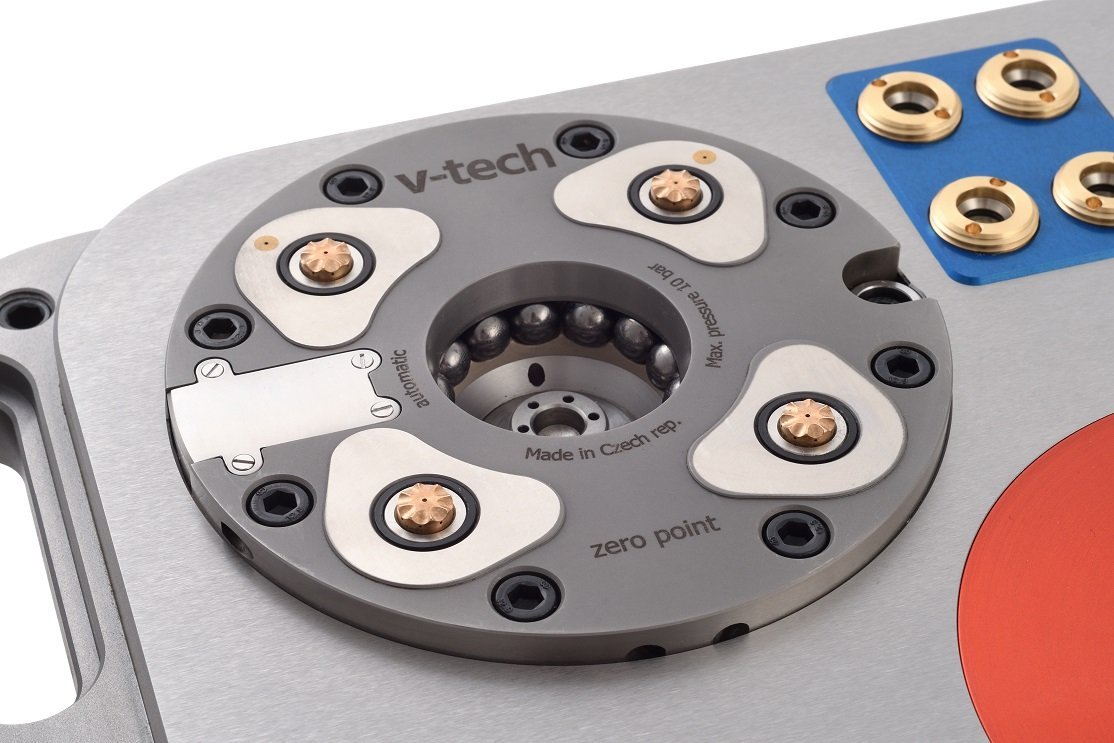

Clamping station with 4 modules of NES-t 135 mm

Massive base made of high quality steel, specially designed for applications in automatic operation together with the Robot Point robotic head.

  • Highly durable and stable base body

  • Tensile force 4 x 24 kN

  • RFID sensor

  • Clamp open sensor

  • Airsensoring - checking the correct seating
    4 x plastic plug

Short name Tensile force (kN) Studs spacing (mm) Exchange time (s) Force medium Material Dimensions (mm) Weight (kg) Price (EUR) Order code
AZV-T 4H 2004 4 x 24 200 < 10 air high-grade steel 360 x 456 26,1 7993 € 2017030000



Properties
Replacement method automatic
Blow cleaning of mating surfaces yes
Check of clamping airsensoring
Number of pneumatic connectors 4
Number of hydraulic connectors  on demand
